Welding Fume Extraction

Welding Fume Extraction is required for safe and effiecient fabrication and cutting processes. This includes MIG, TIG, Arc, Robot Cells, Aluminium, Chrome , Iron, Nickel Alloys, Galvanised and Stainless Steel. Below are a small number of options for protection and extraction of these harmful fumes which cause health problems and negatively affect production.

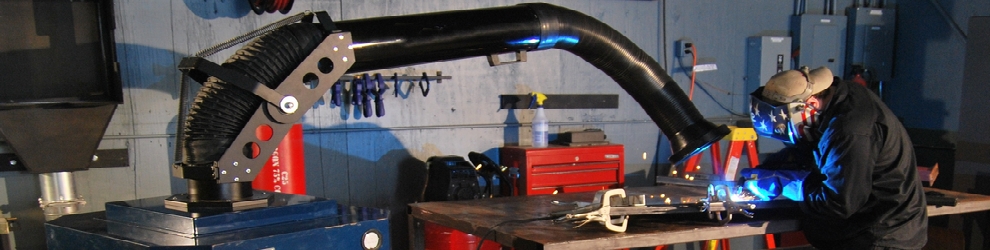

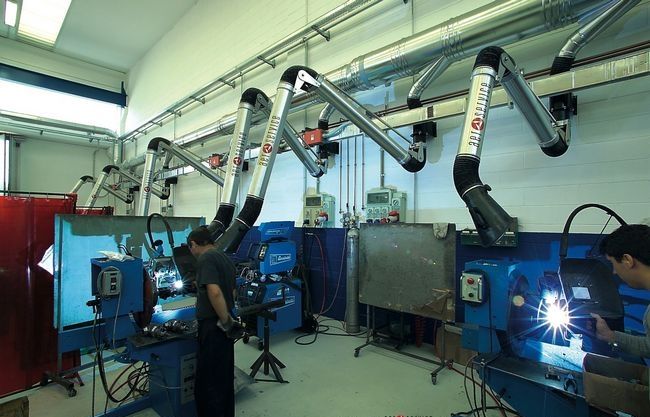

Articulated Arms are ideal for small work bays, this type of arm is available in different lengths to ensure ample reach is on hand. Due to the unique design of the internal skeleton, excellent positioning of the hood adjacent to the source of fume is achieved.

Case Study - Welding Fume Extraction Arms (PDF: 147KB)

Case Study - Welding Fume Extraction (PDF: 66KB)

Case Study - Fettling Extraction (PDF: 64KB)

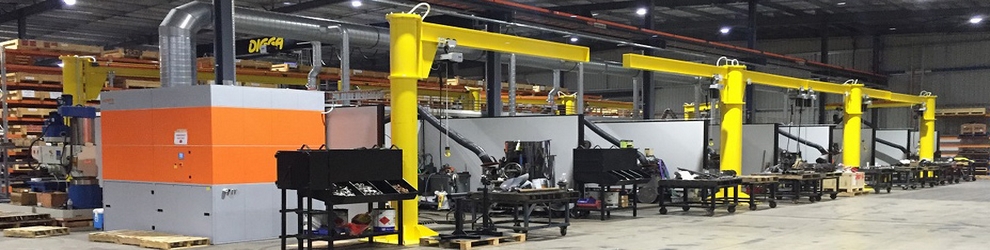

Cranes provide cover for those larger work areas. It is able to span the work space; a centre joint further enhances the ability to position the crane over the job and folds neatly in half when not in use to save space.

Case Study - Welding Fume Extraction Crane Arms (PDF: 204KB)

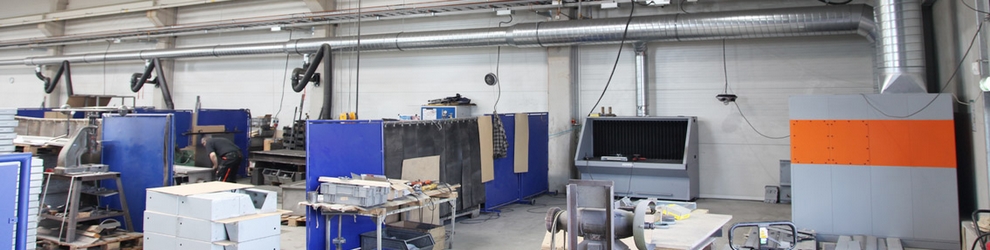

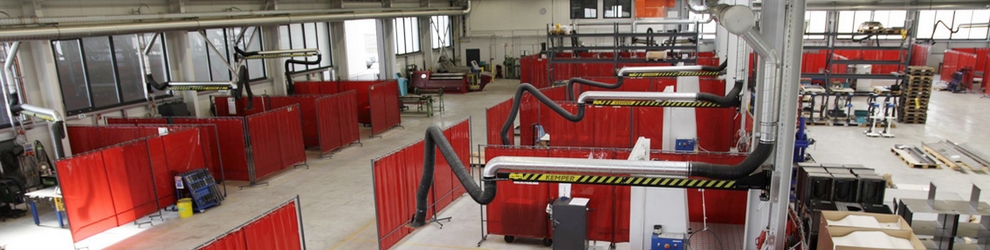

Suction Rail extraction systems are suitable for coverage of a large workshop. Extraction Arms hang from the rail to give free movement through 360ยบ, in addition the arms can be moved along the length of the rail to any desired position.

Case Study - Welding Fume Extraction Rail (PDF: 162KB)

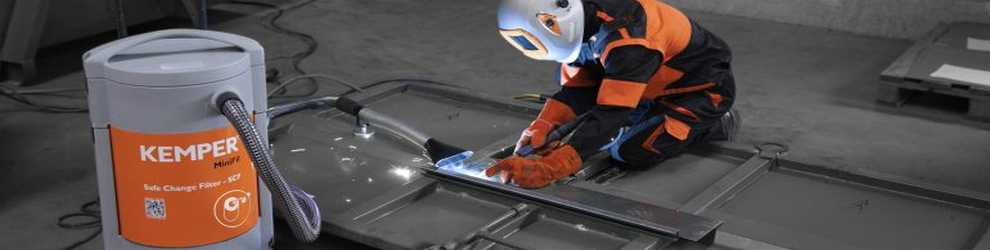

Mobile extraction units are available with either a mechanical or electrostatic filter these units come wired and ready to use and offer a versatile solution.

Case Study - Welding Workshop Extraction (PDF: 62KB)

HSE Guidance Sheet - Welding Fume

To arrange a free no obligation quotation click here to contact us via E-Mail!

Welding Fume Extraction

Fixed Arms

Click to enlarge image

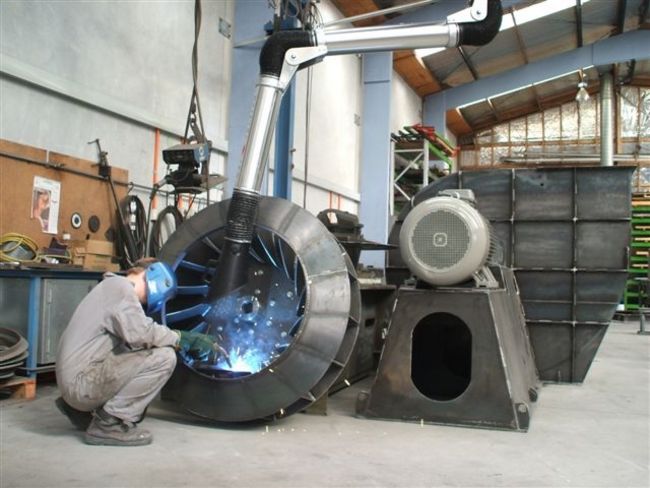

Welding Fume Extraction Arm

Articulated Arms

Click to enlarge image

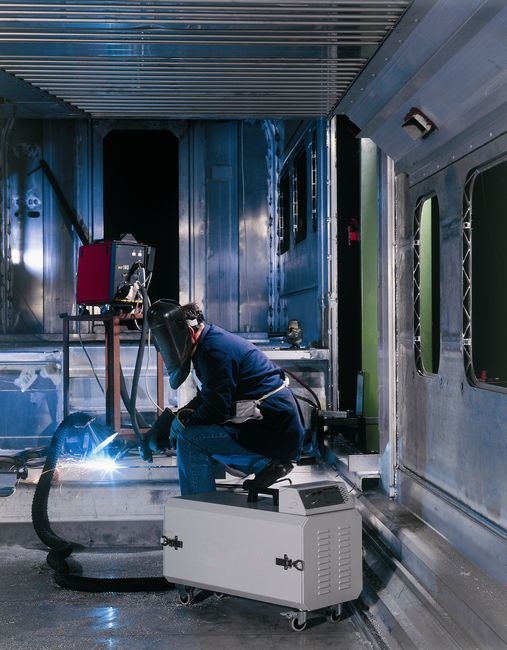

Portable Welding Fume Extractor

Portable Units

Click to enlarge image
